Authored by Todd Gureckis and Hillary Raab Aspects borrowed from Computational Cognitive Modeling graduate course.
Building and Artificial Agent that learns from reinforcement
The previous part of the lab you took part in a simple reinforcement learning experiment known as the multi-armed bandit. In addition, we analyzed some of our data to understand how our patterns of choices related to the rewards. In this part of the lab we are going to build an artificial agent that learns to perform the same task by itself.
This gives you some initial understanding of the field of computational cognitive science and computational modeling of human behavior.
When we build a model we often have to think about the sequence of steps that are needed in order to perform a task. What do you think those are for the multi-armed bandit?
Discuss with your neighbors/group for five minutes some of the ingredients you think might be needed in order to solve the task. For example what information do you need to keep track of? How do you make decisions about which arm of the bandit to choose?
To get started, we need to define the RL environment for the agent. Let's apply this agent to the same task you performed. Read in your data file from the experiment phase using the following command:
rl_df = pd.read_csv("rlexp-XXX.csv")
rl_df.head()
Ok, in this data frame columns 'reward0', 'reward1', 'reward2', and 'reward3' define the amount of reward you would have gotten by selected each of the respective arms of the bandit. As a result, we can use these rewards to test out our artificial agent.
Let's begin by creating a very simple agent that randomly choose arms. This bandit is going to be really simple and trivial. It is the same as an agent that choose randomly with its eyes closed. However, it is a useful starting point for coding smarter agents.
class RandomAgent():
def __init__(self, k):
self.num_actions = k
# you could add parameters to your agent here
pass
def choose(self):
return random.randrange(self.num_actions)
def learn(self, reward, action): # this agent doesn't learn
pass
Here we use a python 'class' which is an object-oriented framework for combining multiple functions and variables together. Notice that the class definition starts with the name of the agent and then includes a few functions. These functions are tabbed over so there are "within" the definition of the agent. We can think of these functions as adding "powers" to our agent. We have defined three functions. The __init__() function is a special one. It is a function that gets run when our agent is "created" or born. Here it just intialized the number of available actions to k (k=4 in our experiment). The other two functions are choose() and learn(). These two functions allow us to make decisions and learn, respectively.
Right now our agent is really dumb. In the learn function it just uses the pass keyword which means nothing happens. So our agent is unable to learn. The choose function is similarly dumb. It randomly chooses an action from the available set. Thus this agent is neither strategic nor able to learn. Let's make it better!
But first, let's see exactly how bad this little guy is!
# keep track of a few things
agent_choices = []
agent_rewards = []
agent_max = []
# create our random agent
dumbagent = RandomAgent(4)
# for each row in our original data
for idx, row in rl_df.iterrows():
choice = dumbagent.choose() # have the agent choose
reward = row[f'reward{choice}'] # get the reward for that choice
max_r = choice==row['best_resp'] # is it the "maximizing" response?
#track everything for analysis
agent_choices.append(choice)
agent_rewards.append(reward)
agent_max.append(max_r)
# add new columns to the data frame similar to our human data
# that are for the agent
rl_df['agent_choice'] = agent_choices
rl_df['agent_reward'] = agent_rewards
rl_df['agent_max'] = agent_max
Great! Now we have let our agent play the exact same game and we can compare the agent to how we performed!

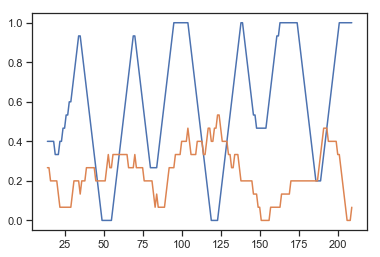

w=15
plt.plot(rl_df['max'].rolling(window=w).mean())
plt.plot(rl_df['agent_max'].rolling(window=w).mean())
print("Agent earned:", rl_df['agent_reward'].sum(), ", Chose best response:", rl_df['agent_max'].sum()/rl_df['agent_max'].count())
print("Human earned:", rl_df['reward'].sum(), ", Chose best response:", rl_df['max'].sum()/rl_df['max'].count())
Interesting! The agent seemed to earn significant less and also chose the best response about 25% of the time. That last part is expected (it chose randomly from four options). However, the fact that it earned so much less reward than you is because it doesn't know how to learn or make smart decisions.
We would like to make our agent smarter. One way is to keep track of the rewards it has received from each option and to choose the arm of the bandit with the most total reward
class SmarterAgent():
def __init__(self, k):
self.num_actions = k
self.reward_history = [[0], [0], [0], [0]]
pass
def choose(self):
reward_avg = np.array([np.mean(i) for i in self.reward_history])
max_reward=npr.choice(np.flatnonzero(reward_avg == reward_avg.max()))
return max_reward
def learn(self, reward, action): # this agent doesn't learn
self.reward_history[action].append(reward)
# keep track of a few things
agent_choices = []
agent_rewards = []
agent_max = []
# create our random agent
agent = SmarterAgent(4)
# for each row in our original data
for idx, row in rl_df.iterrows():
choice = agent.choose() # have the agent choose
reward = row[f'reward{choice}'] # get the reward for that choice
max_r = choice==row['best_resp'] # is it the "maximizing" response?
# NOW THE AGENT LEARNS!!!
agent.learn(reward, choice)
#track everything for analysis
agent_choices.append(choice)
agent_rewards.append(reward)
agent_max.append(max_r)
# add new columns to the data frame similar to our human data
# that are for the agent
rl_df['agent_choice'] = agent_choices
rl_df['agent_reward'] = agent_rewards
rl_df['agent_max'] = agent_max
Problem 1
Based on the way we analyzed the behavior of the RandomAgent, make a similar plot for the SmarterAgent. How does it do? Why do you think the outputs look like the do. Write a few sentences describing your obsrvations.
The SmarterAgent we just considered keeps track of the average reward from each bandit arm in a list. However, it always chooses the best action so far. What is wrong with this strategy?
Discuss with your neighbors/group for five minutes what is wrong with this strategy. Enter a markdown cell below with the notes from your discussion.
The agent would do better if we can inject some randomness into its decisions. Not as much as the random agent but something close. One common strategy for this in computer science is called Epislon-greedy or $\epsilon$-greedy. Under this strategy, you choose the best action most of the time but with probability equal to $\epsilon$ (a small number) you chose randomly. Thus, this agent would kind of combine elements of both the random and smarter agents.
Problem 2
Below I provided a template for a SmarterExploringAgent. This agent is similar to the one above but I have deleted the choose function and will ask you to implement that decision rule. Your code should use the parameter epsilon to decide to either choose randomly (see RandomAgent) or choose the best option with the highest average reward (like SmarterAgent). After you implement it run it on the problem and see how it does. Remember you will need to provide the epsilon parameter to the choose() function in your code. You should make this number relatively small (like 0.01) but you can play with different numbers.
class SmarterExploringAgent():
def __init__(self, k):
self.num_actions = k
self.reward_history = [[0], [0], [0], [0]]
pass
def choose(self, epsilon):
pass
def learn(self, reward, action): # this agent doesn't learn
self.reward_history[action].append(reward)
The agent we have made learns but it does this in a somewhat unrealistic way. We could say it has a memory for every past reward it has recieved and each time it makes a choice it computes the average of those experiences. As the amount of trials in the experiment (or episodes in life) increase, this agent will have to grow a really large memory and possibly it won't fit in the computer anymore. This seems unrealistic compared to how we solved the problem, right?
But there is still another problem with this approach. Your Smarter agent probably still didn't do that well because it has TOO much memory... These bandits are changing how good they are from time to time and this bandit tracks the overall average. This means it'll still be averaging together values from the past even when things change. It is like even after your favorite restaurant becomes bad you still use the good experiences you had long ago to make your decision today. The best thing to do sometimes is to forget the past and move on!
A common solution to this is to track the average incrementally. Incremental tracking of an average can be done with much less memory. To do this we will calculate something called the Q value for each bandit on every trial. The Q value can be estimated by taking the Q value on the previous trial and adding the prediction error, scaled by the learning rate.
Okay, don't be scared, but let's write this out as a mathematical equation. Again we have:
- the value of a particular machine: Q(s,a)
- the learning rate which can be written as alpha
- the prediction error
The preciction error is calculate by subtracting what you expected (the value of a particular machine) from the reinforcement, which we can define as r (always 1 for reward or 0 if there is no reweard). Here is the prediction error equation: $[r - Q(s,a)]$
Then we can update the Q values in Q-learning as follows:
$Q(s,a) = Q(s,a) + \alpha [r - Q(s,a)] $
Problem 3
Before we continue, let's get a little more experience with the prediction error. If you get a reward of 1, and the Q value is .6 (this is what you expect). Is this a positive or negative prediction error? What is the value of the prediction error?
Problem 4
Below I provided a template for a SmarterExploringIncrementalAgent. You should first implement the learn function. I have provided the first bit of code to help you update the value of the chose q_value. This should be 1 line of code and you are just putting the variables together like in the quation (self.q_values[action] = Q(s,a) in the equation, reward is r, and alpha is the alpha). Next you have to adapt the choice function from above to use the q-values.
class SmarterExploringIncrementalAgent():
def __init__(self, k):
self.num_actions = k
self.q_values = np.zeros(4)
pass
def choose(self, epsilon):
# modify your choice rule from the previous agent to use the q_values
pass
def learn(self, reward, action, alpha): # this agent doesn't learn
# replace this line here with the q-learning equation
self.q_values[action] = reward
Problem 5
Copy the code from above to apply this agent to the task and evaluate its performance. How does it do? How does learning change when you move around the learning rate? What happens when the learning rate is 0? What happens when the learning rate (alpha) is 1? What about as it approaches 0 or 1?
Problem 6
You created a bunch of agents in this exercise, each trying to be more and more similar to humans. What aspect do you think these agents still lack compared to the way you solved the problem?
